AHC-20 Aluminum Anode 2.5" x 6" x 12"

(No reviews yet) Write a Review

SKU:: AlumAnodeAHC20
UPC:
MPN:: 547724
Availability:: Usually Ships in 5 - 10 days
Weight:: 16.00 LBS
Shipping:: Calculated at Checkout

No Free Shipping

$108.90

Current Stock:

Quantity:

Description

Description

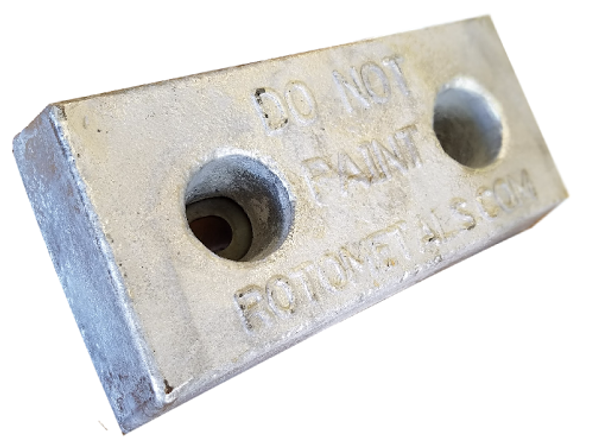

The AHC-20 is a commercial Aluminum Anode containing a galvanized steel core with 6" centers for bolt on applications. This anode weighs approximately 16-18 lbs and measures 2.5" x 6" x 12".

ELEMENTS

Zn % 4.23 %
Fe % 0.072%
Cu % 0.0037%
In % 0.016%
Si % 0.092%
Others Ea 0.02% Max
Al % Balance
