Rotometals.com
AHC-10 Aluminum Anode 1.25" x 6" x 12"
(No reviews yet)
Write a Review
- SKU:
- AlumAnodeAHC10
- MPN:
- 547719
- Availability:
- In Stock Now!
- Weight:
- 10.00 LBS
- Shipping:
- Calculated at Checkout
No Free Shipping
Description

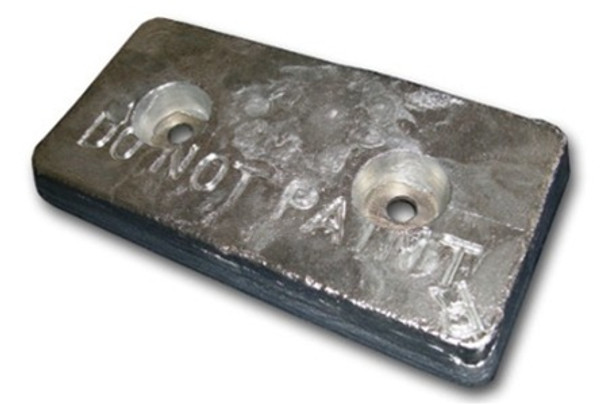

The AHC-10 is a commercial Aluminum Anode containing a galvanized steel core with 6" centers for bolt on application. The anode weighs approximately 10 lbs, and measures 1.25" x 6" x 12".
ELEMENTS
Zn % 4.23 %
Fe % 0.072%
Cu % 0.0037%
In % 0.016%
Si % 0.092%
Others Ea 0.02% Max
Al % Balance
Related Products
No Free Shipping
ASS-10 Aluminum Anode 2.75" x 3.5" x 12"
Rotometals.com
$50.60
The ASS-10 Aluminum Anode contains a single galvanized steel mounting strap measuring .188" x 1.25" x 16". It may be welded on as is or you may drill holes into the strap for bolt on applications.
No Free Shipping
ASS-5 Aluminum Anode 1.25" x 3" x 12"
Rotometals.com
$30.80
The ASS-5 Aluminum Anode contains a single steel mounting strap measuring .188" x 1.25" x 16". It may be welded on as is or you may drill holes into the strap for bolt on applications. The
No Free Shipping

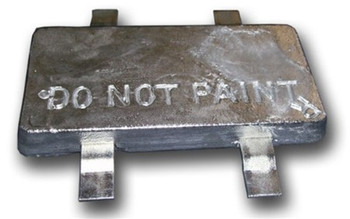

ZHS-23 Zinc Anode 1.25" x 6" x 12"
