AHS-20-D Aluminum Anode 2.5" x 6" x 12" - Double Strap
(No reviews yet)
Write a Review
- SKU:
- AlumAnodeAHS20
- MPN:
- 547743
- Availability:
- Usually Ships in 24 Hours
- Weight:
- 16.00 LBS
- Shipping:
- Calculated at Checkout
No Free Shipping
Description

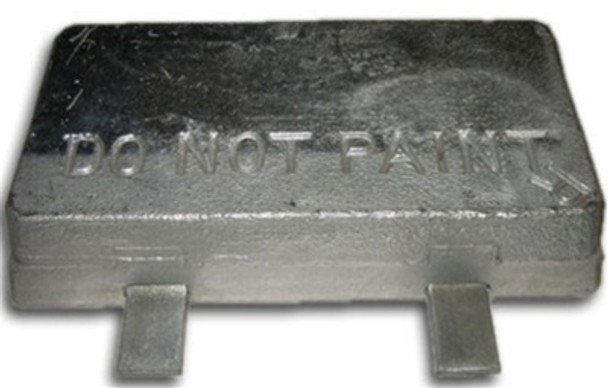

The AHS-20-D is a commercial Aluminum Anode containing two galvanized steel mounting straps with 6" centers. It may be welded on as is or you may drill holes into the strap for bolt on applications. The anodes weighs approximately 16-18 lbs and measure 2.5" x 6" x 12".
When ordering, please make sure that you want the AHS-20 Double Strap, not the AHS-20 Single Strap or the AHS-20-A.
ELEMENTS
Zn % 4.23 %
Fe % 0.072%
Cu % 0.0037%
In % 0.016%
Si % 0.092%
Others Ea 0.02% Max
Al % Balance
